COLD SOLVENT EXTRACTION EQUIPMENT
Built To Last For A Growing Industry
FEATURING AUTOVAP 30
- Fully Automated Operation
- Built in Fail Safes, Alarms, Data Logging, and Remote Access
- 95-99% Solvent Recovery
- Solvent Resistance Touch Screen
- Up to 45 GAL/HR (170 Liters) Per Hour Recovery
- Residence Time of Less than 3 Minutes
- Uses 3-A Sanitary Components
- C1D2 Compliant & UL 508B Compliant
- Peer Engineer Reviewed
PRODUCE MORE REVENUE
Automation cuts down on user error and labor fees. Only one skilled operator is required for any piece of equipment.
HIGHER PRODUCT YIELDS
Our extraction systems are designed for efficiency and clean-ability. Minimizing product hold up and integrating Flush In Place systems reduce the cleaning cycle time and ensures less product lost to waste.
TIME EFFICIENCY
Our Time is Money. Our equipment is designed for continuous use, with minimal daily maintenance. After all, you’re paying for your facility 24/7, shouldn’t the equipment run that way too?
SEE YOUR ROI
See how TruSteel’s equipment has the highest return rate of any equipment on the market.
TRUSTEEL – A FULL SERVICE COMPANY

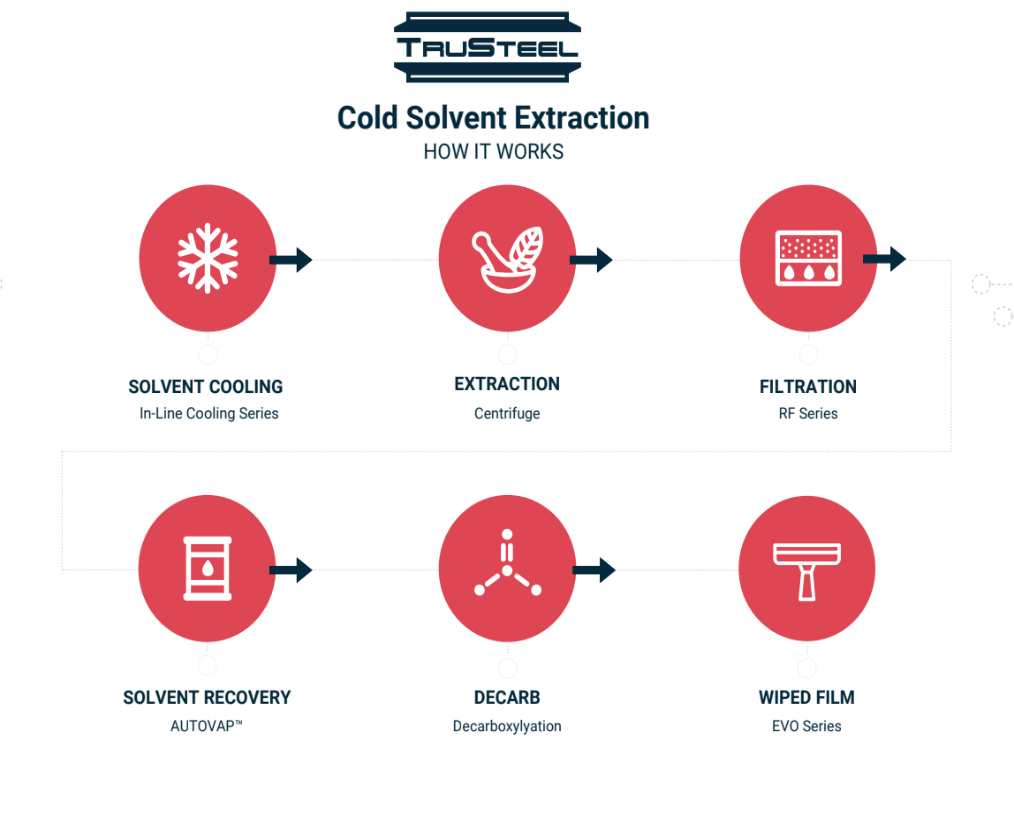

TruSteel is the premier solution and knowledge provider in the hemp and cannabis industry. We work with engineering firms and cannabis processors to deliver truly integrated, automated, end-to-end, extraction systems that maximize profits and take efficiency to the highest level. Clients working with TruSteel lean on our team of experts and in-house equipment solutions for reliable support, performance, and service all under one roof; including solvent storage/transfer, solvent chilling, extraction, filtration, solvent recovery, decarboxylation, and distillation systems for a continuous and fully automated process, eliminating bottlenecks and providing our clients a pathway to easily scale up.
PRODUCT LINE-UP
FOR BOTANICAL EXTRACTION
INSTACOOL 100 GMP
100 US Gal/hr, (379 Liters)
The InstaCool 100 GMP is designed to chill up to 100 US Gal/hr of clean solvent from room temp down to -55C, completely inline. All the features of the standard model but with ASME BPE SF1 finished shell and tube heat exchangers and fittings, NIST traceable instrumentation, full material and welding certs. Higher flowrates and configurations available upon request.
INSTACOOL STANDARD FEATURES
MADE IN USA
Designed, and built in Grass Valley, California by our team of expert engineers and assemblers to ensure the highest quality.
CONTINUOUS PROCESS FLOW
Eliminates hold up common with batch processing, reduces amount of solvent in play in the system meaning so you can turn product around faster, safer, and more efficiently.
-55 °C RATED
Multiple configurations available from room temp down to -55C. Colder solutions available upon request
AUTOMATION
Programmable logic controller eliminates user error and downtime. Simply put, you can’t break it!
INSTALLATION
Our team of professional installers will ensure everything is operating correctly and qualify the system, and even help dial in your SOPs!
TRAINING
Training is included, and new operators can be trained and added on the fly with our remote access features.
ENGINEER REVIEWED
Peer Engineer Reviewed for C1D2 hazardous locations to ensure critical design safety.
GUARANTEE
We guarantee the system will perform to the listed specifications, or your money back! Talk to us today about your application, and see how TruSteel can guarantee your performance.

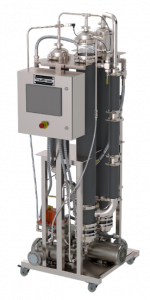

AUTOVAP 30 - SOLVENT RECOVERY SYSTEM
UP TO 45 US GAL/HR*
(170 liters) per hour recovery The AV30 adds full automation Allen Bradley system as well as a more compact package over the AV15. It is the most efficient solvent recovery system on the market when comparing throughput to footprint. 13 points of data measurement combined with built in fail safes, alarms, data logging, and remote access makes the AV30 stand alone as the industry leader with a guaranteed 99% recovery rate and up to 45 US Gal/hr. The AutoVap30 has a residence time of less than 3 minutes, is C1D2 Compliant, Peer Engineer Reviewed, uses 3-A sanitary components, as well as a UL 508B built PLC.AUTOVAP 100 - SOLVENT RECOVERY SYSTEM
UP TO 100 US GAL/HR*

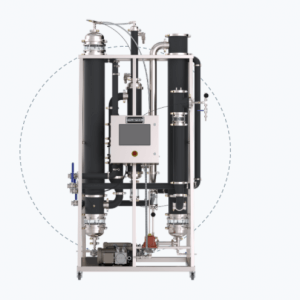

(378 liters) per hour recovery An industrial scale step up from previous generations, the AutoVap 100 adds heat recovery in the form a Patent Pending condensing preheating system. Utilizing hot solvent vapor to preheat the feed liquid cuts down on heating costs, and subsequently utilizes cold feed solution (any temperature from 30C down to -60C) to condense the hot solvent vapor, reducing the load on your cooling system. The combined savings is roughly 84,000 BTUs!Built with ASME listed, domestically sourced components the AutoVap 100 can also be upgraded to BPE SF1 or even SF4 finish standards for the most strict GMP operational environments such as pharmaceutical industries.
AUTOVAP EQUIPMENT INCLUDES
CHILLER
Includes a high quality chiller with modbus communication that best fits your requirements and growth plans.
VACUUM PUMP
A high quality, UL Listed vacuum pump is included in every turnkey package.
WATER PUMP
UL Listed water pump with Ethernet connection data logging for consistent heating, every time.
HOT WATER HEATER
UL listed gas or electric water heaters come standard, with temperature ranges from room temp to 193 F.
INSTALLATION
An assigned Project Manager will guide you through the entire installation process to best suite your timelines.
TRAINING
Comprehensive, hands on training with you and your team will set the standard for how to run the machine as well as assure that you can do so confidently before we leave.
OPTIMIZE
After your machine is running, we are here to help you optimize your process and help with any troubleshooting.
GUARANTEE
Talk to us today about your application, and see how TruSteel can guarantee the system will perform to your specifications!
DR-10 DECARBOXYLATION REACTOR
UP TO 10 GALLON BATCHES
38 Liter Max Capacity Finally, a solution to high volume decarboxylation. The DR10 is capable of devolitizing and decarbing up to 10 gallons of material per batch. Simple operation with precise temperature readings allow for full control over the decarb process. Made from high quality stainless steel parts and a C1D1 compliant motor, the DR10 also comes with all necessary ancillary equipment. The DR10 works great in tandem with TruSteel AutoVaps in a closed loop system. Comes standard with neoprene over Kevlar insulation wrap to ensure safe operation.STANDARD FEATURES DECARB SERIES
CHILLER
Includes a high quality chiller that best fits your requirements and growth plans, when paired with an AutoVap the system can piggyback off the AV’s chilling system.
CONDENSER
Allows the condensation of VOC’s to minimize emissions when off-gassing CO2 via decarboxylation. Also reduces odor of the vapor stream.
REMOTE FOR VARIABLE FREQUENCY DRIVE
Low voltage remote control system available for C1D2 environments, key FOB’s are also available for C1D1 applications.
OIL HEATER
High quality, UL Listed 12KW oil heater comes standard for quick start up times and efficient devolatization.
VIRTUAL INSTALLATION
An assigned Project Manager will guide you through the entire installation process to best suite your timelines.
TRAINING
Advanced video training saves time and money to get you up and running as quick as possible.
ENGINEER REVIEWED
Peer engineer reviewed in 25+ states to ensure critical safety.
GUARANTEE
We guarantee the DR-10 will perform to your specifications! Talk to us today about your application, and see how TruSteel can guarantee performance.

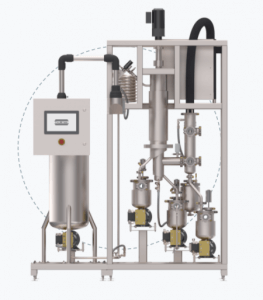

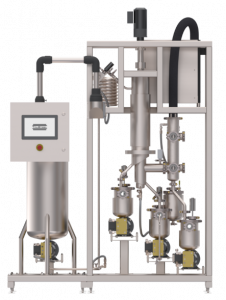

EVO 6 LPD-SA LONG PATH STAND ALONE
Base Module Decarboxylation, Solvent Stripping, and Terpene Removal
Achieve the ultimate separation with a Long Path Evaporator. Many compounds share properties that make separation difficult, such as terpenes or solvent vapor that act as a carrier. Increasing the vapor path will limit crossover in the de-volatilization stage, increasing yields and removal efficiency. Further processing of heavier compounds is best carried out in a Short Path Evaporator, where the distance of the vapor is minimal, and deep vacuum is applied for critical molecular separation and higher purities. Start with a Stand-Alone unit and built your ideal distillation unit from there. We can customize the system to distill just about anything.
EVO 6 LPD-AO LONG PATH ADD ON
Add-On Module, Additional Terpene/Solvent Removal
The long path add on is key if you are decarboxylating or stripping solvents in the first pass. An additional long path stage will minimize odor content, and guarantee a product fit for any end-formulation. It can even be used for post-refining terpenes and flavor molecules for connoisseur grade results.EVO 6 SPD-SA SHORT PATH STANDALONE
Base Modular, Processing of Already De-volatized Material
The EVO 6 SPD-SA is a solution for processing already devolatized material. Whether it’s re-distilling an inferior product, capturing residues from a waste stream, or simply distillating a product with low VOC content, the stand alone unit is a perfect fit for any lab.

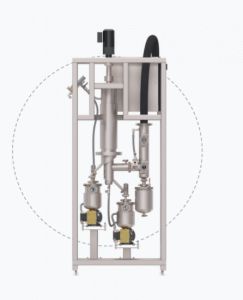

EVO 6 SPD-AO SHORT PATH ADD ON
Add-On Unit, Main Body Distillation, Residue Removal
The SPD add on module pairs with a base unit to add main-body distillation of heat-sensitive compounds. Multiple units can be tied together for subsequent refining and capturing any residuals in the waste stream. Up to six units can be tied together to create the ultimate processing line and perfect your product formulations while minimizing waste product and lost revenue due to inefficiencies.EVO SERIES STANDARD FEATURES
LOW RESIDENCE TIME
Less Than 3 Minutes. Minimal residence time is key for reducing degradation at high temperatures.
EXPLOSION PROOF OPTIONAL
Hazloc Control System and Motors. Engineered to C1D2 specifications and signed off by a UL508B panel shop.
CONTROL PANEL
Controls everything with the push of a button. Dial in heater/chiller/vacuum parameters and create custom recipes with alarms and failsafes.
CONTINUOUS FLOW
Gear pumps for feed and discharge means no more swapping flasks and turning off the system.
INSTALLATION INCLUDED
Our team of professional installers will ensure everything is operating correctly and qualify the system, and even help dial in your SOPs!
TRAINING
Training is included, and new operators can be trained and added on the fly with our remote access features.
ENGINEER REVIEWED
Peer Engineer Review available upon configuration to ensure critical design safety.
GUARANTEE
Talk to us today about your application, and see how TruSteel can guarantee the system will perform to your specifications!
